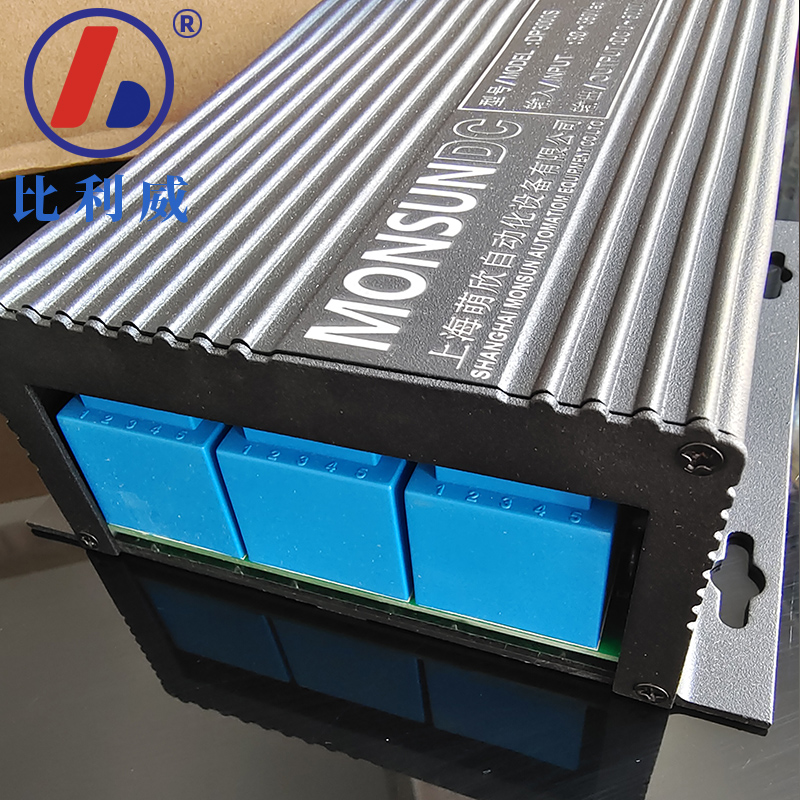

上海萌欣EDI电源DP3000S系列是萌欣推出的经济型EDI直流电源,适用于IONPURE、苏伊士、麦克尼斯、坎普尔以及国内大多数模块品牌的电源控制。
经济型—DP3000S系列/DP3000Sseries
DP3000S系列电源根据市场的变化及客户的需求,自2019年开发及现场应用的小型化产品,因过硬的品质和良好的技术支持,产品深受客户好评。目前从500T/H光伏超纯水系统到石化行业1800T/H除盐水大系统都有普遍应用。
DP3000S系列电源是根据目前市场上常用的连续电去离子(EDI)膜块单台产水流量5-8T/H的ED膜块物理特性和全膜法系统的工艺要求,严格采用知名品牌的芯片组和电子元器部件,以先进的设计理念和多年的实际现场经验为ED膜块提供了具有恒压/恒流(可调);过压、过流、断水等保护措施和远程控制等系列功能的持久稳定性直流电源,以保证ED膜块的长时间工作安全和性能的稳定发挥。
电气参数特性:
规格型号/model:DP3000S
交流输入电压/ACInputV:3ΦAC380V±10%/50HZ
·直流输出电压/DCOutputv:0~500VDC
-直流输出电流/DCOutputA:0~6ADC
翰入控制信号/Enterthecontrolsignal:0~-10VDC
过载能力/Overloadcapacity:150%额定电流,时间小于30S
·调节电流/Adjustcurrent:0~100%可调
过流保护/Overcurrentprotection:80~150%可调
■启停方式/Start-stopmode:软启动,软关断
-结构方式/structure:单元式
·工作方式/Howitworks:连续式
·冷却方式/Cooling mode:自然冷却
体积大Volume size: L147mm*W183mm*D62mm
功耗/Powerconsumption:空载约10W
适用负载/Suitableload:单台产水流量5~8T/HEDI膜块
配套数显控制操作面板:
规格型号/model:KP-2-10A
作电源/Operating powersupply:AC220V±10%/50HZ
·显示电压量程/Showvoltagerange:0~500VDC
·显示电流量程/Showcurrentrange:0~10ADC
控制信号/Controlsignal:0~-10VDC
作温度/Operating temperature:0℃~40℃
外形尺寸/formfactor:96mm*96mm*110mm
开孔尺寸/Opening size:92mm*92mm
DP3000S series powersupplyaccordingtomarket changesand customerneeds since 2019todevelopand fieldapplicationsof
mteueteetqutpreentfrom500T/Hphotovoltaic
ultrapurewatersystem tothe petrochemicalindustry1800T/Hdesalinated watersystemis widelyused
TheP3000Sseries powersupplyis basedon the curent marketcommonlyused
blosinglewterproductionFow58T/HEDmembraneblocphysicalcharacteristicsandfull-filmsystemprocess requiremets
strictuseofwel.kbrandsofchipsetsand electronics Withadvanceddesign
theutpdethmebeblwthtteureovercurent
water cutoffandother protection measuresand remote controlseriesoflong-lasting stability DCpowersupplytoensure the
EDImembrane block Long vrking safety and stable performance.afetyand performance
